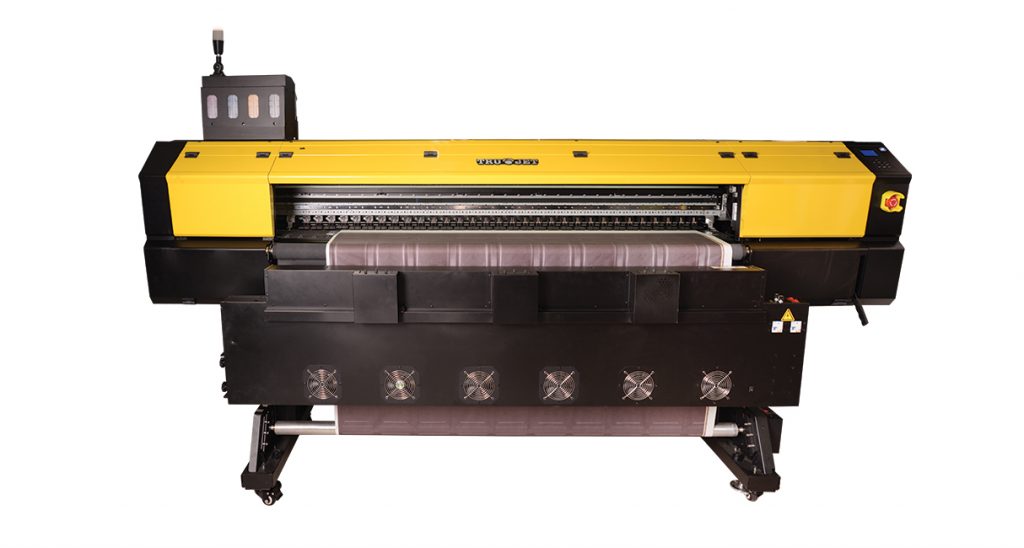

Trujet M3 Digital Sublimation Textile Printing Machine

  • Perfectly precise and very sharp print results

  • Minimum drop size 2 pl

  • n. 3200 nozzles per head, n. 9600 nozzles in total

  • Independent dedicated suction pump for wiper and flash stations

  • Special design patented 2 stage ink feeding system

  • Independent pump for each print head group

  • Pneumatic feed and draw rollers that can wrap 1000 meters of paper

      You can visit our other Textile Sublimation Printing Machines

      You can visit our Cotton Printing Machines (DTF, DTG)



190cm

260cm

320cm

Print Head

n.3 On demand Piezo print head / Staggered

–

–

Maximum Print Width

1900 mm

–

–

Ink Type

Sublimation Dispers, Double CMYK

–

–

Number of Colors

4 Colors, 6 Colors (Optional)

–

–

Ink Feeding System

Open bulk system with 20 µm filter.

–

–

Media

Width: 210 ~ 1910 mm

Thickness: 1 mm or less

Weight: up to 20 kg

Lenght: 200 – 300 m

Roll Diameter: 50 mm – 75 mm

–

–

Printing Speeds

360 x 1200 dpi – 2 pass 158 m²/h

360 x 1800 dpi – 3 pass 119 m²/h

720 x 1200 dpi – 4 pass 79 m²/h

–

–

RIP Software

ErgoRIP (textprint) / Neostampa / Maintop

–

–

Interface

Gigabit Ethernet

–

–

Power Features

AC 100 ~ 120 V ± 10 / AC 220 ~ 240 V ± 10, 50/60 Hz ± 1Hz

–

–

Power Consumption

300 W or less (except drying unit)

–

–

Net Sizes (G x D x Y)

3350 x 680 x 1460mm (G x D x Y)

–

–

Gross Sizes (G x D x Y)

3640 x 1080 x 1200mm (G x D x Y)

–

–

Net / Gross Weight

380 kg / 480 kg

–

–

Trujet M3 digital textile sublimation printers are with high performance, perfectly precise and very sharp print results.
You can print on clothing and home textiles, sportswear, t-shirts, flags, banners, all kinds of textile advertising products, pop display stands. For the Trujet digital textile sublimation printers with the latest technology that provides highest printing quality at low cost: You can get information from +90 212 637 03 34, satis@karyadijital.com or Sign In Turkey.
For other Trujet model options with advanced winding system, you can visit our Digital Printing Machines category.

190cm

260cm

320cm

You can find our Trujet M3 catalog here

–

–
